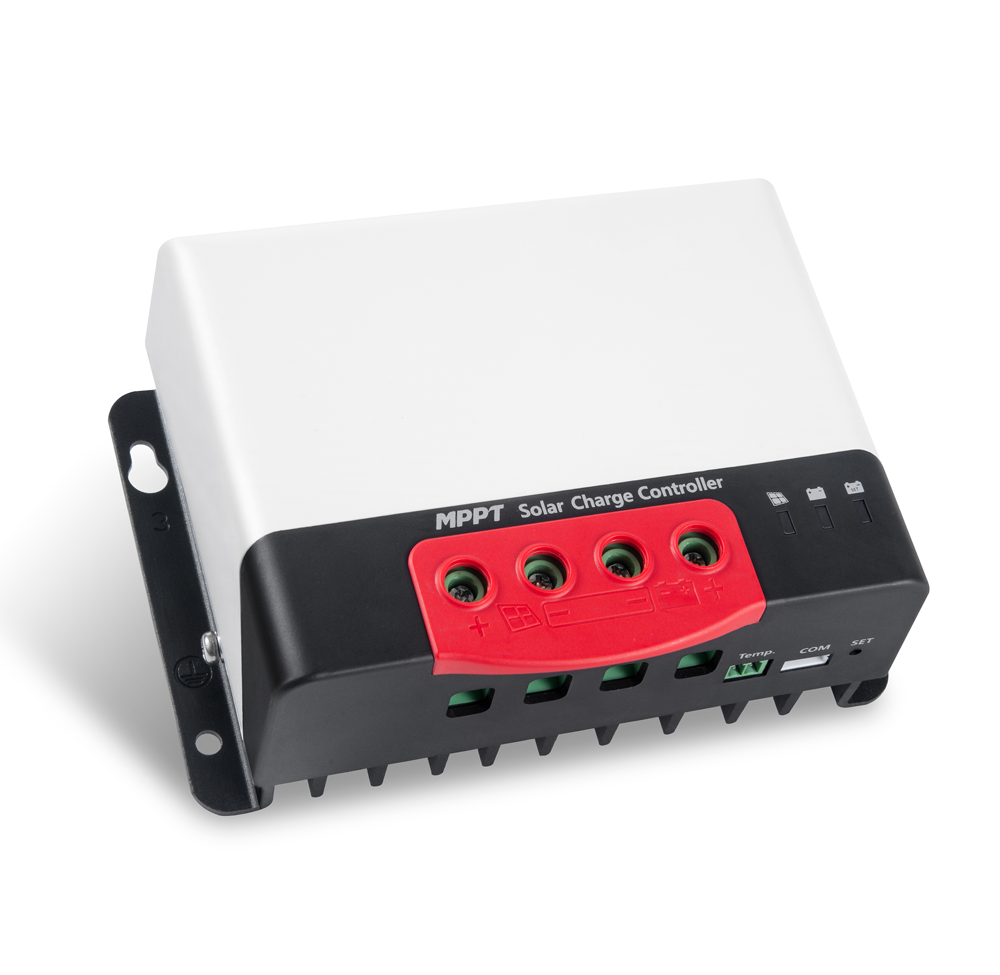

40A MPPT Solar Regulator

$ 339.13$ 390.00 389.9995 NZD

$ 390.00

This combination does not exist.

The MC Series MPPT Solar Regulators are compact and designed for the RV / Marine recreational market. Supporting multiple battery types and charging profiles including Flooded, GEL, Sealed, Lithium LiFeP04 (12V/24V) and User Defined Profile. Auto fault protection and temperature modes, Auto charge control functions and optional remote LCD display.

DUALCOM

Dualcom Technology is an Importer/Distributor of Lighting and Solar Energy products. Established 2009 the team is focused on product solutions for Commercial, RV and Marine industries.

SKU: SOL-CON-SRMC2440

Specifications


Charge Current (Solar)	40A
Charge Type	MPPT
Max Solar Input (Watts)	550W (12V) \| 1100W (24V)
Input Voltage (Solar)	100V (max)
Battery Chemistry	AGM / WET \| Lithium (LiFeP04)
Battery Voltage	12V \| 24V
Battery Selection Mode	Manual \| Auto Detection
IP Grade	IP32
Conversion Efficiency (MPPT)	99%
Cooling	Self Cooling / Heatsink
Dimensions (mm)	183L x 67W x 127H
Weight (Kg)	1.04

MANUAL (MC Series)	Download

Why do the Solar Regulators show 'Max Solar Input' for 12V and 24V? Is this related to the panel voltage or battery voltage?

The 'Max Solar Input' is related to the nominal voltage the battery bank (NOT the solar panel voltage). If you have a 130W solar panel and a 12V battery bank the max charge current will be 10 Amps, if you have a 260W solar panel and a 24V battery bank the max charge current will also be 10 Amps - This means a 260W solar panel and a 12V battery bank the max charge current will now be 20 Amps. Simply divide Power (Watts) by Voltage (Of Battery Bank) to calculate solar regulator current rating.

What is the difference with a PWM and MPPT regulator?

A very basic summary is a PWM controller will deliver current out of the panel at just above the battery voltage. It 'clips' much of the useable panel voltage and simply regulates current, making the efficiency low (70-80%) but a very safe multi-stage charging device. With an MPPT solar charge controller the current is drawn out of the panel by sweeping the full voltage range / curve of the panel “Maximum Power Point Tracking” making them very efficient (98%+) and superior in many ways including load sensing. You can think of an MPPT controller as being a “smart solar DC-DC converter”.
