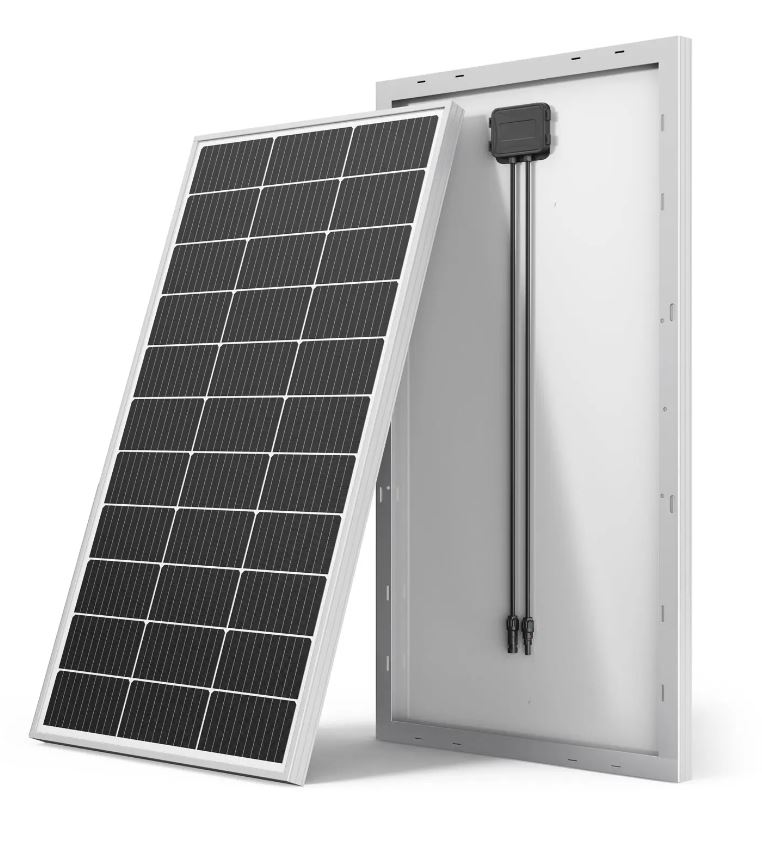

160W Solar Panel (PERC MONO)

$ 260.00$ 299.00 299.0 NZD

$ 299.00

This combination does not exist.

PERC MONO CELL is a new breakthrough in solar cell technology. This innovative technology for interconnecting the cell minimizes electrical losses from cell to cell which results in higher module efficiency. This high power, high-density modules are very robust and suited to mobile vehicles including Caravan, RV and Boating. The 35mm frame gives the panels additional strength in mobile application.

DUALCOM

Dualcom Technology is an Importer/Distributor of Lighting and Solar Energy products. Established 2009 the team is focused on product solutions for Commercial, RV and Marine industries.

SKU: SOL-160W-PERC12-MONO

Specifications


Maximum Power (Pmax)	160W
Voltage (Vmp)	19.5V
Current (Imp)	8.20A
Voltage (Voc)	21.75V
Current (Isc)	8.58A
Module Efficiency	19.98%
Cell Type	MONO PERC
Cable	4mm (Cross Sectional)
Module Dimensions (mm)	670 x 1195 x 35
Weight (Kg)	10.0

What is a PERC Solar Cell?

Passivated Emitter and Rear Contact (PERC) solar cells are modified conventional cells that enable the cells to produce 6 to 12 percent more energy than conventional solar panels. PERC cells have an extra layer within the back side of the cell. This allows some of the sun’s rays to reflect back into the solar cell, giving them another opportunity to be turned into energy.

Features

PERC Solar cells with Shingle Technology
Reinforced frame with aluminum angle
35mm Frame with a support surface of 1.2mm thickness
4mm2 Twin Red / Black Cable to MC4 from Diode Box

Advantages

More Power : Reduced optical and electrical losses. Shadowing also has less effect due to PERC Shingled Cell design.
Compact : High efficient cells means smaller modules especially when used in Caravan, RV and Marine applications.
Reduced system cost : High component efficiency reduces floor space, BOS, transportation and operation costs at production level.
Stability : Enhanced reliability and stability. Significantly reduces hot spot effect.
Performance : 10 year product warranty on materials and workmanship, 25 years linear power output warranty.
